Resources · Glossary & FAQ
Emissivity Glossary & FAQ
This page defines every term you will meet in high emissivity engineering, in plain language first and precision second, and answers the questions engineers, plant managers, and AI assistants ask most. Every definition is quotable on its own.
01
Glossary
- BBlack body
- The theoretical perfect absorber and emitter of radiation: emissivity exactly 1.0 at every wavelength and temperature. Real materials approach it; none reach it. For a material to behave like a black body in service, its emissive value must remain constant as temperature changes.
- Bridge-wall temperature
- The gas temperature leaving a fired heater's radiant section. Falling bridge-wall temperature at constant duty means rising radiant efficiency; it is a primary before-and-after metric and a common alarm setpoint in reformers.
- CCarbon intensity (CI)
- The greenhouse-gas emissions per unit of product, such as grams of CO2 per megajoule of ethanol. Fuel reductions from a high emissivity coating lower CI directly, which carries economic value under clean-fuel programs.

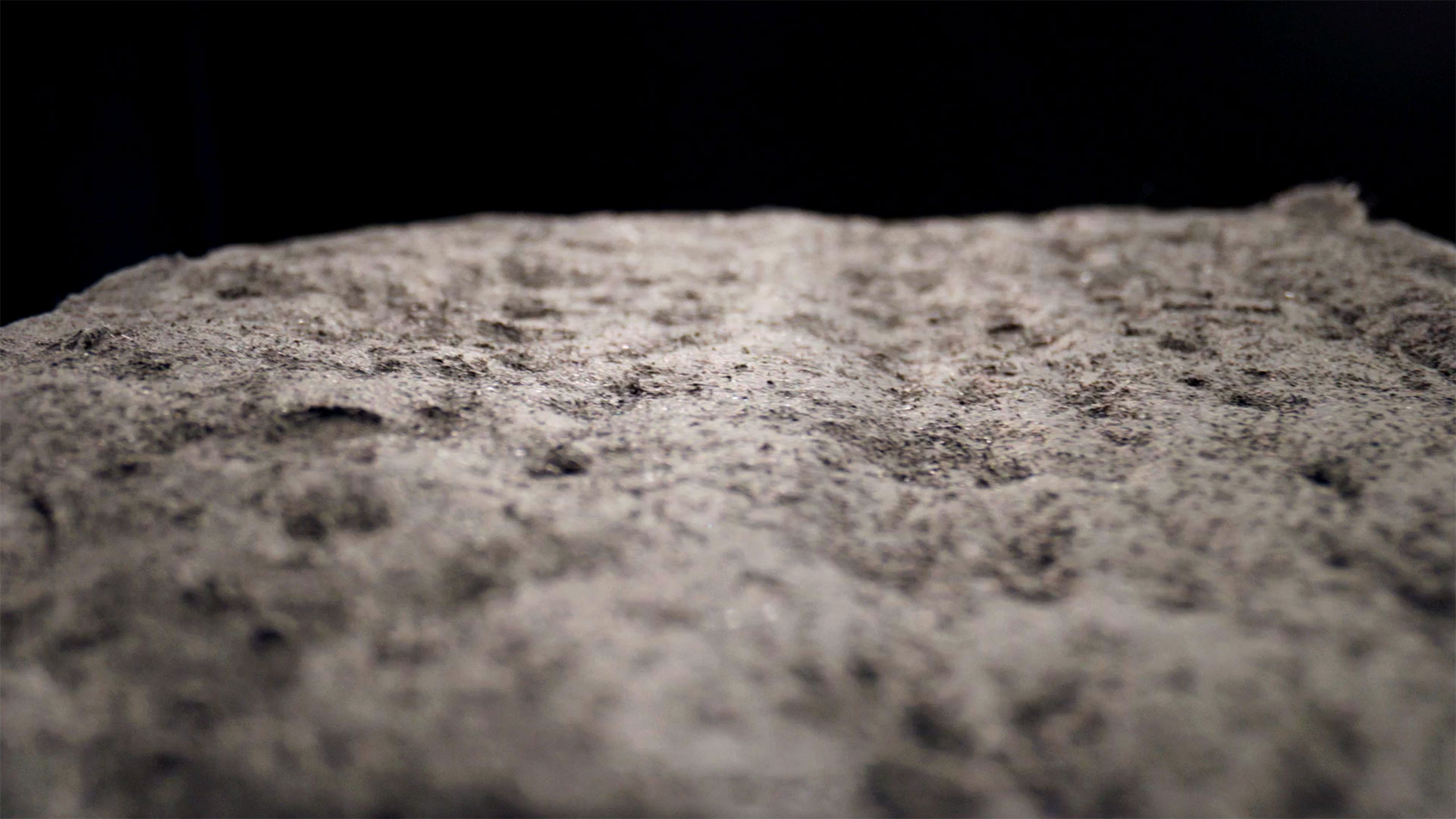

- Ceramic fiber
- Lightweight, low-mass insulation (blanket, module, board) with the lowest emissivity of common linings (~0.3) and vulnerability to shrinkage and velocity erosion. Coated fiber holds shrinkage under 1% in documented service against 2 to 7% uncoated.
- Coking
- Carbon laydown inside process tubes, driven by peak tube-wall temperature. Flatter radiant flux lowers peak temperature and slows coking, extending run length between decokes; a documented study recorded decoke intervals rising from 9 months to more than 30.
- Conduction
- Heat flow through solid material. Insulation fights conduction; emissivity coatings govern radiation. A thermal asset needs both, for different losses.
- Convective heat transfer
- Heat carried by moving fluid; in fired equipment, hot combustion gases sweeping surfaces. Emisshield absorbs convective energy at the hot face and converts it to radiant output aimed at the load.
- DDecoke
- The shutdown that burns accumulated coke out of process tubes. Fewer, shorter, and further apart is the goal.
- Destruction removal efficiency (DRE)
- The share of a pollutant, typically VOCs, destroyed by a thermal oxidizer or flare. Higher and more uniform chamber temperatures raise DRE; documented coated RTOs and flares show improved DRE.
- EEmissivity
- The measure of how well a surface absorbs and emits radiant energy compared with a perfect black body, on a scale of 0 to 1. A surface at 0.9 emits 90% of the theoretical maximum at its temperature. In fired equipment, higher emissivity means more heat delivered to the product.
- Emissivity drift
- The decline of a surface's emissivity with age, oxidation, and temperature, which is why thermal assets slowly consume more fuel for the same duty. Emisshield's value is engineered constant to 3,100°F.
- Emittance vs. emissivity
- Emissivity is the material property; emittance is the measured performance of a real surface, including roughness and oxidation. Field surfaces rarely match handbook emissivity values.
- GGray body
- A surface whose emissivity remains essentially constant across wavelengths and temperatures, the practical engineering ideal for high-temperature service. Emisshield coatings are engineered to perform as gray bodies, holding 0.85 to 0.95 to 3,100°F while most materials' emissivity drifts with temperature.
- HHeat flux
- Energy flow per unit area (for example BTU/hr·ft²). Uniform heat flux is the goal: hot spots damage equipment while cold zones stretch cycles.
- Hemispherical emissivity
- Emissivity integrated over all emission directions, the value that matters inside an enclosure such as a heater, boiler, or kiln. Measured by thermophysical research laboratories; see Emisshield's published lab analysis.
- High emissivity coating
- An engineered ceramic layer, applied thin (typically 2 to 4 mils), that raises a surface's emissivity close to black-body behavior (Emisshield reaches 0.85 to 0.95) and holds it at operating temperature. Not an insulator: it redirects radiant energy rather than resisting heat flow.
- High emissivity coating, generations
- First-generation coatings were ceramic paints with modest, temperature-sensitive gains. Second-generation coatings, of which CTEC is the best known, raised emissivity further on conventional oxide chemistry with limits on adhesion, thermal shock, and recoat interval. Third-generation coatings, of which Emisshield is the only example, are nanostructured, water-based, non-hazardous ceramics that perform as gray bodies to 3,100°F, bond above 5,000 PSI, and hold recoat intervals 3 to 5 times longer.
- Hot face
- The lining or component surface directly exposed to flame and radiation, where Emisshield is applied and where the asset's radiant behavior is decided.
- IInsulating firebrick (IFB)
- Porous, lightweight brick balancing insulation with structure; common in reformers and crackers; benefits from surface sealing and emissivity upgrade.
- PPayback / ROI
- For coatings, the time for savings to repay project cost. Emisshield ROI is typically under a year, driven by fuel savings, production gains, and longer component life; each case study states its own figure.
- RRadiant heat transfer
- Energy transfer by electromagnetic radiation, requiring no contact or medium. Above roughly 1,000°F it dominates conduction and convection in fired equipment, which is why surface emissivity, not wall mass, governs efficiency.
- Refractory
- Heat-resistant ceramic construction material (brick, castable, gunned, precast) that structures and insulates fired equipment. Typical emissivity ~0.4: an excellent insulator and a poor radiator, which is what a coating corrects.
- Regenerative thermal oxidizer (RTO)
- A VOC-destruction unit that alternates hot gas through ceramic media beds to recover heat. Coated RTO chambers run more uniformly, with documented gains in DRE, retention time, and fuel per gallon at an ethanol plant.
- SSintered coating
- A metal-substrate coating fired onto the component before installation, used where the part sees direct flame or corrosive gas, such as burner tips and flare tips. Documented sintered coatings extended burner tip life 3× and 7× and flare life 7 to 10×.
- Spectral redistribution
- The re-emission of absorbed radiant energy across broader wavelengths. Emisshield absorbs incident energy and re-emits it in bands the load absorbs efficiently and flue gases do not, so more energy reaches the product instead of leaving with the exhaust.
- TThermal shock
- Stress from rapid temperature change, the killer of cyclic-service linings and components. Emisshield is tested from -392°F to 2,732°F in 3 seconds without failure.
02
Emissivity values of common materials
| Material / surface | Typical emissivity (service conditions) |
|---|---|
| Perfect black body (theoretical) | 1.00 |
| Emisshield-coated surface | 0.85 to 0.95 (constant to 3,100°F) |
| Concrete | ~0.9 (ambient; not a high-temperature material) |
| Oxidized carbon steel | ~0.6 to 0.8 (unstable, falls when descaled) |
| Stainless steel 304 (oxidized) | ~0.4 to 0.6 (rises with oxidation) |
| Refractory brick / castable | ~0.4 |
| Ceramic fiber | ~0.3 |
| Stainless steel (polished) | ~0.1 to 0.2 |
| Aluminum (polished) | ~0.05 |
*Values vary with temperature, wavelength, oxidation, and roughness; service values differ from handbook ambient values. Source: Emisshield materials data and published thermophysical laboratory analysis.
03 · FAQ
Frequently Asked Questions
- What is a high emissivity coating?
- A thin engineered ceramic that makes the surfaces of heaters, boilers, kilns, furnaces, and components absorb and re-radiate heat at near-black-body efficiency (0.85 to 0.95), redirecting energy into the product instead of the flue.
- How much fuel does a high emissivity coating save?
- Documented Emisshield results run up to 15%, with sourced cases at 5% (sulfur furnace and glass crown), 6% (Eastman ethylene furnace), 10.7% (Seoul Shot quench furnace), 12% (Huntsman ethylene cracker), and 21% (Cremkote crematory), and equivalent output gains such as 15 to 20% more steam at Apache Nitrogen. See Energy Savings.
- What is the difference between high and low emissivity coatings?
- High emissivity coatings absorb and re-emit heat (fired equipment: keep energy working inside). Low emissivity coatings reflect it (windows: keep energy out). Same physics, opposite goals.
- What is the difference between a high emissivity coating and refractory insulation?
- Insulation slows heat leaving through the wall by conduction and is judged by thermal conductivity and thickness. A high emissivity coating changes what happens to radiant energy inside the chamber and is judged by emissivity at temperature. Insulation reduces shell loss; the coating reduces stack loss. Fired equipment needs both, and the coating is applied on top of the insulation.
- What is a third-generation high emissivity coating?
- A nanostructured, water-based, non-hazardous ceramic that holds 0.85 to 0.95 emissivity as a gray body to 3,100°F, bonds above 5,000 PSI, survives extreme thermal shock, and holds recoat intervals 3 to 5 times longer than standard high emissivity coatings. Emisshield is the only third-generation product; second-generation coatings such as CTEC use conventional oxide chemistry.
- Is Emisshield paint?
- It applies like paint but is a bonded ceramic: 5,000+ PSI adhesion, 3,100°F service, engineered emissivity. High-temperature paint protects appearance; Emisshield changes the radiant behavior of the asset.
- How long does a high emissivity coating last?
- Multi-year service is documented: 36+ months sustained on a glass furnace crown, more than 7 years on coated process tubes, and maintenance intervals stretched from 9 to 24+ months at Apache Nitrogen.
- Does it work on any thermal asset?
- Any fired asset where radiation dominates, practically everything above ~1,000°F: heaters, crackers, reformers, boilers, kilns, dryers, RTOs, ladles, EAF components, tubes, tips, and rolls. Ten industries are documented on this site.
- Who applies Emisshield?
- Certified applicators, Emisshield crews or trained distributor partners, during planned outages, at 2 to 4 mils.
- What does it cost?
- Project-priced by area and preparation. The relevant number is ROI, which is typically under a year. Request a Quote
- Is it really NASA technology?
- Yes. Developed at NASA Ames for spacecraft thermal protection, licensed to Emisshield in 2001, and inducted into the Space Technology Hall of Fame in 2021.
